01
Labelling and Marking of Batteries
Detailed battery markings including capacity, chemistry, safety symbols, and the separate collection symbol, in compliance with EU Battery Regulation 2023/1542.

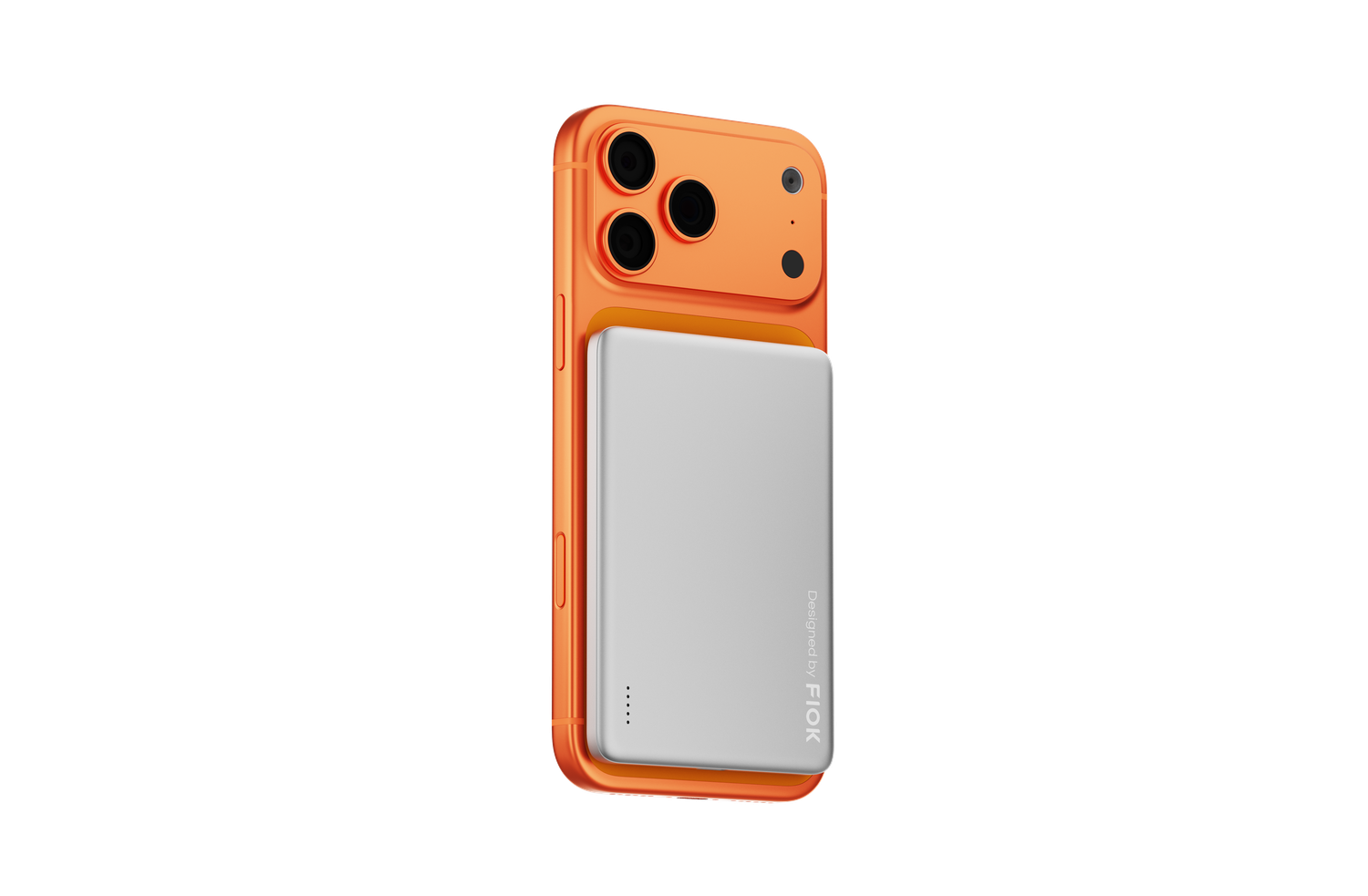

A pocketable 5000mAh power bank with built-in magnetic alignment. Snaps onto iPhone and MagSafe-compatible devices for cable-free 15W Qi wireless charging in an 8mm, 115g aluminum frame.
The slim 8mm shell houses a 5000mAh cobalt-blended lithium cell with magnetic Qi wireless charging and 22.5W Type-C PD output.
| Model | AM01 |
|---|---|
| Product Name | Magnetic Wireless Power Bank |
| Manufacturer | FIOK |
| Battery Type | Lithium-ion Polymer (3.87V single cell, cobalt-blended) |
| Battery Pack Capacity | 5000mAh |
| Battery Energy | 19.35Wh |
| Rated Capacity | 3000mAh (at 5V ⎓ 2.4A) |
| Dimensions | 102.77 × 70.77 × 8 mm |
| Weight | Approx. 115g |
| Port Configuration |
Type-C Port × 1
+ Magnetic Qi wireless output (15W)
|
| Max Input | 15W (5V⎓3A) |
| Max Output | 22.5W Type-C · 15W Wireless |
| Display | 4-LED battery indicator (25% / 50% / 75% / 100% steps) |
| Material | ABS + PC V0 flame-retardant, snap-on magnetic ring |
| Applicable Standards |
GB 4943.1-2022
GB 31241-2022
Qi 1.3.3
|
FIOK is committed to full compliance with the EU Battery Regulation. Below you will find all required documentation covering labelling, conformity, supply chain, and end-of-life management.
Per EU Battery Regulation 2023/1542, applicable to all batteries placed on the EU market.
Detailed battery markings including capacity, chemistry, safety symbols, and the separate collection symbol, in compliance with EU Battery Regulation 2023/1542.
Official declaration confirming that FIOK batteries meet all applicable EU safety, health, and environmental protection requirements.
Policies and procedures to identify, prevent, and mitigate social and environmental risks in our battery raw material supply chain.
Information for end-users on the proper collection, treatment, recycling, and disposal of waste batteries per EU Directive 2006/66/EC.
AM01 recharges via the single Type-C port at 15W. A 5V/3A PD charger fills the pack in roughly 3 hours.
| Input Interface | Type-C (only) |
|---|---|
| Input Voltage / Current |
5V⎓3A
15W Max
|
| Charging Efficiency | ≥84% |
| Charging Time | Approx. 3 hours with a 5V/3A charger (power adapter not included) |
Type-C output up to 22.5W plus a magnetic 15W Qi wireless pad. Both paths can be active simultaneously when the wired port is connected to a host.
| Type-C |
5V⎓3A
9V⎓2.22A
10V⎓2.25A
12V⎓1.67A
22.5W Max
|
|---|---|
| Magnetic Wireless Pad |
5V⎓1A
7.5V⎓1A
9V⎓1.12A
9V⎓1.65A
15W Max
|
A built-in N52 neodymium ring snaps AM01 onto iPhone 12 and newer, plus any MagSafe-compatible case. 15W peak wireless output (9V⎓1.65A) for fast top-ups — no cables, no alignment guesswork.
Snap-on magnetic alignment with peak 15W wireless output. Compatible with iPhone 12 and newer, plus any MagSafe-certified accessory.
Built-in N52 neodymium ring auto-aligns with iPhone's MagSafe coil for optimal charge positioning every time.
Up to 9V⎓1.65A wireless input to the device — fast enough for a full top-up during a coffee break.
iPhone 12 and newer snap on directly. Other Qi phones charge via flat placement — no magnetic lock required.
PD 3.0 + PPS + QC 3.0 cover every modern phone and tablet. Wireless output follows the Qi 1.3.3 standard for cross-brand compatibility.
Dual-chip protection (SW6236 + CM1143) plus NTC temperature monitoring. CCC, CE, FCC, Qi-certified for global sale.
CCC Certificate No. 2026010914851367 · valid through 2031-03-10
Snap-on auto-power, one button to check status, and a 4-LED ladder that shows remaining capacity at a glance.
At 19.35Wh, AM01 sits well under every airline's 100Wh carry-on limit. Pocketable, magnetic, and ready for the cabin.
The 19.35Wh battery energy is well under the 100Wh carry-on limit, making it allowed on flights in both carry-on and checked baggage under every major airline policy. Slim 8mm body slides into any pocket, and the magnetic snap-on means you can charge your phone while boarding without taking the power bank off.
Every FIOK product is backed by a comprehensive 3-year limited warranty. Full terms, claim procedures, and regional coverage details are available on the dedicated warranty page.
From the date of purchase, your FIOK AM01 is covered against defects in materials and workmanship under normal use. Register your product within 30 days to activate the full coverage and unlock priority support.
